Description

Model CS-H3c-R100-1J4WKFL ( Color Night Vision )

Camera

Image Sensor : 1/2.7”Progressive Scan CMOS

Minimum Illumination : 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

IR Night Vision Distance : Up to 98 ft / 30 m

Shutter Speed : Self-adaptive shutter

Lens : 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal) , 2.8mm@F2.0，view angle: 100° (Horizontal), 125°(Diagonal)

Lens Mount : M12

DNR : 3D DNR

WDR : Digital WDR

Day / Night Switch : IR-Cut filter with auto-switching

Video & Audio

Max. Resolution : 4MP, 2560 × 1440

Frame Rate : Max: 30fps; Self-Adaptive during network transmission

Video Compression : H.265 / H.264

Video Bit Rate : Quad HD; Hi-Def; Full HD; Standard. Adaptive bit rate

Audio Bit Rate : Self-Adaptive

Max. Bitrate : 4 Mbps

Network

Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth: Supports 20 MHz

Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps

Wi-Fi Pairing: AP Pairing

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol : EZVIZ Cloud Proprietary Protocol

Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Function

Detection: Human Shape Detection, Motion Detection Waving-Hand Detection

Customized Alert Area : Supports

Integration: Works with Alexa, Google Assistant, IFTTT

General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Storage

Local Storage Supports microSD card (Up to 512 GB)

Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)

General

Operating Conditions: -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)

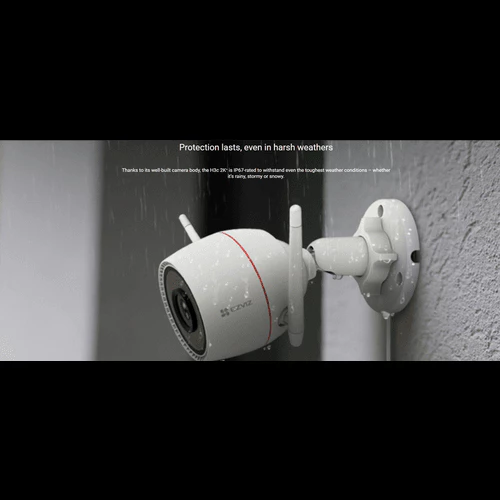

IP Grade: IP67

Power Supply : DC 12V / 1A

Power Consumption : MAX. 9W

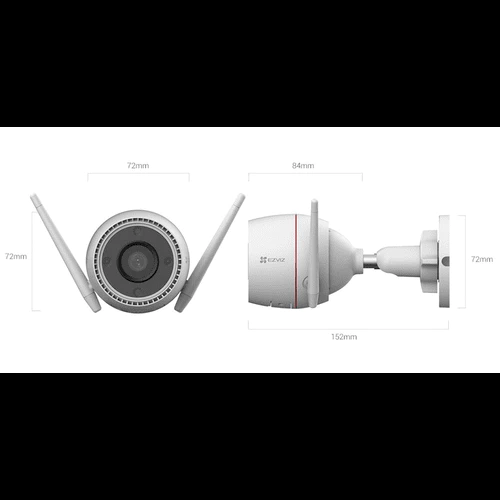

Dimensions : 72 × 72 × 157 mm (2.83 × 2.83 × 5.98 inch)

Packaging Dimensions : 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)

Weight(With Package) : 539 g (19.01 oz)

Net Weight : 330 g (11.64 oz)
